zigbee firmware and releated

EmberZNet (EZSP) Zigbee 3.0 / Zigbee Coordinator (NCP) firmmware for Silicon Labs EFR32MG13 and EFR32MG21 DIY USB dongle.

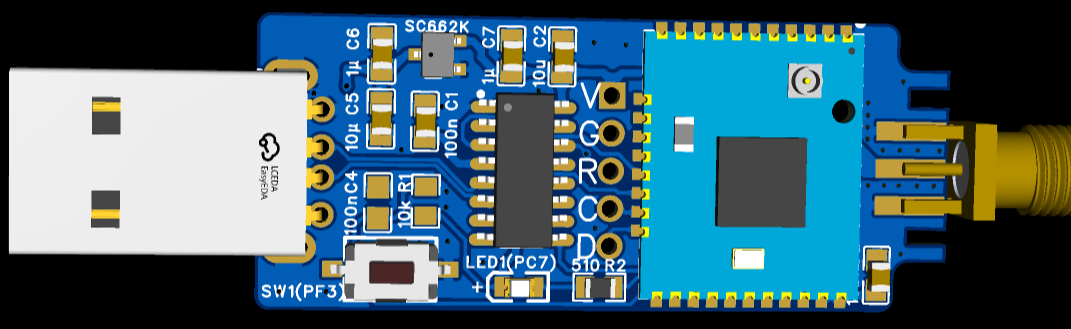

efr32mg13p732usb2zigbee

Files for usb2zigbee( EFR32MG13) locate in folder https://github.com/dongbh/zigbee/

Configuration Parameter	Value	Flow Control
TX	PA0
RX	PA1
RTS	PF4
CTS	PA2
Bootloader	bootloader-uart-xmodem.s37
Firmware(6.10)	ELE_MG13_zb_ncp_115200_610_211112.gbl	None
Firmware(7.4.3)	ncp-uart-hw-115200-7.4.3.gbl	Hardware
Firmware(7.4.3)	ncp-uart-noflowcontrol-115200-7.4.3.gbl	None

How to Flash:

1. Install universal-silabs-flasher

   pip install universal-silabs-flasher


2. Download firmware

3. Flashing firmware

   universal-silabs-flasher --device com5 flash --firmware ncp-uart-hw-115200.7.3.2.gbl


   device can be comX (windows) or /dev/ttyUSB0 (linux), replace it and firmware file with your own.

4. Check Status

   universal-silabs-flasher --device com5 probe
